Faceted Composite Tracks

Overview

The UCSC Genome Browser carries a lot of data tracks, especially on its core assemblies. To keep them navigable, we offer several types of container tracks - tracks whose job is to hold other tracks, the way a folder holds files. A composite track is one of those containers: it groups related tracks and gives them a single configuration page. Our Conservation tracks are usually composites, and so is each of our "All GENCODE" tracks, such as All GENCODE V50 on hg38. The standard composite interface works well for somewhere around 20-200 subtracks, but it gets unwieldy once the count runs into the thousands. Faceted composites are an alternate interface for those cases.

The faceted display works best for data sets where each subtrack carries many values you might want to filter on (cell type, protocol, date, experiment scores), and where any one user only cares about a handful of them. Since the point is to help users find the subtracks relevant to them, the only per-subtrack option here is whether it displays or not. Anything else about an individual subtrack gets set later, through the right-click Configure menu in the main hgTracks display.

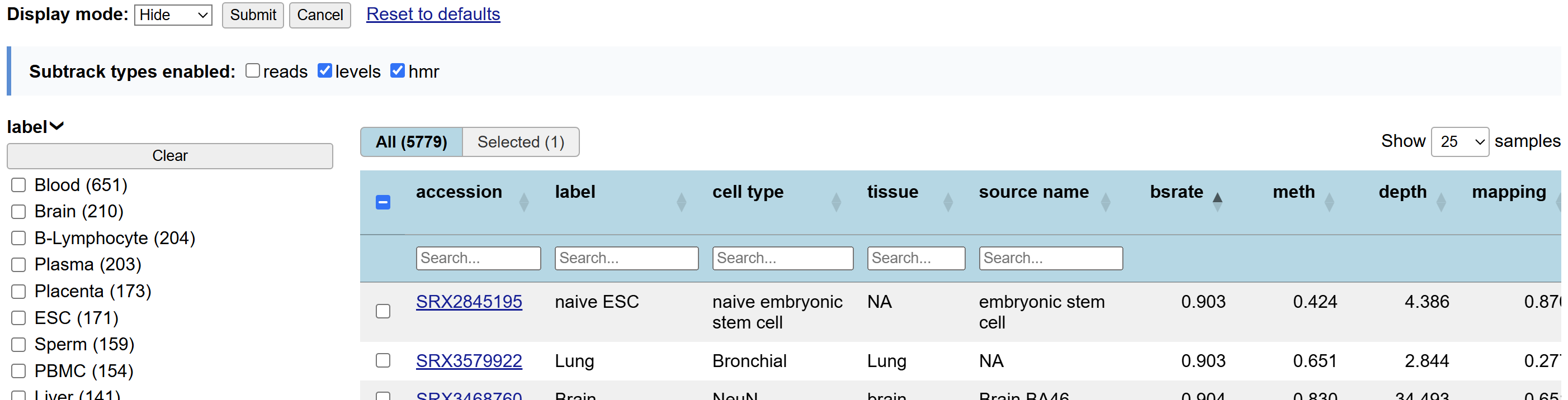

Example of an interface for a faceted composite, showing facets on the left, and a table listing subtracks on the right. The table has been filtered for subtracks where the tissue type is blood, plasma, or brain.

Quick Start

The short version: a faceted composite works like any other composite, except that it can't include views or subgroups. All subtracks live under the same parent, the composite track itself, and they can be a mix of data types. A metadata file is required, has to be web-accessible, and holds the facet values for each track. The composite's trackDb settings need a "primaryKey" setting naming one of the fields in that file, and child tracks need names matching <parent_name>_<primaryKey value>.

TrackDb entries

  track myComposite
  compositeTrack faceted
  metaDataUrl https://url/to/metadata.tsv
  primaryKey name
  shortLabel Blood tests
  longLabel Blood tests

  track myComposite_ex1
  parent myComposite
  type bigBed
  bigDataUrl https://url/to/ex1.bb
  shortLabel ex1 peaks
  longLabel ex1 Blood data peaks

  track myComposite_ex2
  parent myComposite
  type bigBed
  bigDataUrl https://url/to/ex2.bb
  shortLabel ex2 peaks
  longLabel ex2 Blood data peaks

metadata.tsv

name    collection_date cell_type   lab
ex1 2026-01-01  erythrocyte Richter
ex2 2026-01-03  erythrocyte Helsing

Example hub

Every setting described on this page is demonstrated in a working example hub. Load it to see the faceted interface, then edit a copy of your own.

The hub uses useOneFile on, so the composite, its subtracks, and all of their settings live in that one hub.txt. It carries the same accessions used in the examples throughout this page. Its metadata.tsv is the fullest version of the file, with the protocol column written in the value|"label" form described under subtrackUrls. If you want the plainer version to start from, use metadata.simple.tsv.

Building a Faceted Composite

Like any composite track, a faceted composite uses two kinds of trackDb stanzas: a single parent stanza that declares the composite as a whole, and a set of child stanzas (also called subtracks) that each carry the underlying data. The parent is what users see in the track list on the browser gateway. Opening it brings up the faceted interface, where users pick which children to display. The sections below start with the bare minimum and add settings from there.

The parent track

At its simplest, a faceted composite parent looks like this:

  track myComposite
  compositeTrack faceted
  shortLabel Blood tests
  longLabel Blood tests across cell types

The compositeTrack faceted line tells the browser to use the faceted interface instead of the traditional composite matrix. shortLabel and longLabel are the names shown in the track list and on the configuration page.

The child tracks

Each child stanza names its parent with a parent line and points at its own data file. A minimal pair of children for the example above might be:

  track myComposite_ex1
  parent myComposite
  type bigBed
  bigDataUrl https://url/to/ex1.bb
  shortLabel ex1 peaks
  longLabel ex1 Blood data peaks

  track myComposite_ex2
  parent myComposite
  type bigBed
  bigDataUrl https://url/to/ex2.bb
  shortLabel ex2 peaks
  longLabel ex2 Blood data peaks

Two things worth noting. First, unlike a traditional composite, a faceted composite places no restriction on the data types of its children - they don't all have to be bigBed, or all bigWig. Second, each child track name follows the pattern <parent_name>_<identifier>, where the identifier comes from the primaryKey field of a row in the metadata file described below. That's how the browser ties a subtrack to its metadata, so the match has to be exact, including capitalization. The track "myComposite_ex2" above pairs with the metadata row whose identifier is "ex2".

With just the settings above, the composite loads and displays, but it has no facets or filters yet. The settings that add them are covered below. Our trackDb documentation is the full reference for each setting; the sections here add context.

view and subGroups

Faceted composites don't use these settings. The metaDataUrl and dataTypes settings control the interface instead. Most tracks never need dataTypes, so the examples below leave it out; there is a section on it further down, along with the naming change it brings.

In most situations, the interface is a table with one row per subtrack, and users pick whichever rows they want. Clicking a row adds that subtrack to the display, and clicking it again removes it. The facet filters alongside the table narrow the list down, which matters because these lists are usually too long to scroll through.

metaDataUrl

To set up the facets, the track needs to include a description of which facets exist and what value each track has for them. That information lives in a separate web-accessible TSV (tab-separated value) file, named in the track's metaDataUrl setting. Here is an example with more metadata than the previous one:

accession   tissue  protocol    treatment   _date   __count
SRR11111    blood   Omni-ATAC-seq   control 2026-01-01  12
SRR11112    blood   Omni-ATAC-seq   IFNg6h  2026-01-01  31
SRR11113    spleen  Omni-ATAC-seq   control 2026-08-21  8
SRR11114    spleen  Omni-ATAC-seq   IFNg6h  2026-08-22  17

Save those lines into a file called something like "myTrackMetadata.tsv", then attach it to your faceted composite by adding

metaDataUrl https://url/to/myTrackMetadata.tsv

to the trackDb settings for the faceted composite track. Copying the block above usually turns the tabs into spaces, so download metadata.simple.tsv, which holds exactly those rows, and edit it in place.

Two of the field names in this example file need explaining: "date" begins with one underscore and "count" begins with two. Those prefixes control whether the field gets a facet and a search box:

Field name in the TSV	Facet on the page	Search box in the table
`tissue`	yes	yes
`_date`	no	yes
`__count`	no	no

The primaryKey field never gets a facet of its own.

primaryKey

The primaryKey setting is required and works together with the metaDataUrl setting. metaDataUrl gives the location of the metadata file, and primaryKey specifies which field in that file identifies the subtracks. That column does not have to come first in the file, though it is often convenient to organize the metadata that way. Its values have to be unique - no two rows sharing the same value. The metaDataUrl setting above would be combined with a setting reading

primaryKey accession

to indicate that subtrack names are pulled from values in the "accession" column, and that subtracks would be named <parent_name>_SRR11111, <parent_name>_SRR11112, <parent_name>_SRR11113, and so on. The corresponding trackDb stanzas for the parent and child tracks would then look something like this:

  track SRRComposite
  compositeTrack faceted
  metaDataUrl https://url/to/myTrackMetadata.tsv
  primaryKey accession
  shortLabel Omni-ATAC-seq
  longLabel Omni-ATAC-seq Results

  track SRRComposite_SRR11111
  parent SRRComposite
  type bigBed
  bigDataUrl https://url/to/SRR11111_data.bb
  shortLabel SRR11111 peaks
  longLabel SRR11111 blood control peaks

  track SRRComposite_SRR11112
  parent SRRComposite
  type bigBed
  bigDataUrl https://url/to/SRR11112_data.bb
  shortLabel SRR11112 peaks
  longLabel SRR11112 blood IFNg6h peaks

  track SRRComposite_SRR11113
  parent SRRComposite
  type bigBed
  bigDataUrl https://url/to/SRR11113_data.bb
  shortLabel SRR11113 peaks
  longLabel SRR11113 spleen control peaks

  track SRRComposite_SRR11114
  parent SRRComposite
  type bigBed
  bigDataUrl https://url/to/SRR11114_data.bb
  shortLabel SRR11114 peaks
  longLabel SRR11114 spleen IFNg6h peaks

dataTypes

The examples above assume one track per accession. In some situations, though, each accession has several tracks in a predictable pattern - a raw counts bigWig, a scaled counts bigWig, and a peak calls bigBed, for instance. One way to handle that is to create synthetic accessions like SRR11111_counts, SRR11111_scaled, and SRR11111_peaks, and treat them all as completely independent. This works, but it fails to capture the relationship between the three tracks, and it puts three rows with identical metadata in the table. The dataTypes setting is the alternative: it lists which data types (raw counts, scaled counts, and peaks) are available for each sample accession. Use it once on the parent track. It expects the same set of data types to be available for every accession.

With dataTypes in use, the page gets an extra selector near the top for choosing which data types to display. Whatever is chosen there applies to every sample selected in the table, so this is a bit less flexible than the plain one-row-per-track arrangement. In exchange, one row per sample can save significant space both in the configuration UI and in the metadata TSV file.

An important note: dataTypes changes the rules for subtrack names. Without it, subtrack names are expected to match <parent track name>_<primary key value>, as in the quick start near the top of the page. With it, they are expected to match <parent track name>_<primary key value>_<data type>. If the composite above used the data types "signal" and "peaks" instead of just peaks, the set of tracks might look like this:

  track SRRComposite
  compositeTrack faceted
  metaDataUrl https://url/to/myTrackMetadata.tsv
  primaryKey accession
  shortLabel Omni-ATAC-seq
  longLabel Omni-ATAC-seq Results
  dataTypes signal peaks

  track SRRComposite_SRR11111_peaks
  parent SRRComposite
  type bigBed
  bigDataUrl https://url/to/SRR11111_data.bb
  shortLabel SRR11111 peaks
  longLabel SRR11111 blood control peaks

  track SRRComposite_SRR11111_signal
  parent SRRComposite
  type bigWig 0 100
  bigDataUrl https://url/to/SRR11111_data.bw
  shortLabel SRR11111 signal
  longLabel SRR11111 blood control signal

  track SRRComposite_SRR11112_peaks
  parent SRRComposite
  type bigBed
  bigDataUrl https://url/to/SRR11112_data.bb
  shortLabel SRR11112 peaks
  longLabel SRR11112 blood IFNg6h peaks

  track SRRComposite_SRR11112_signal
  parent SRRComposite
  type bigWig 0 100
  bigDataUrl https://url/to/SRR11112_data.bw
  shortLabel SRR11112 signal
  longLabel SRR11112 blood IFNg6h signal

  track SRRComposite_SRR11113_peaks
  parent SRRComposite
  type bigBed
  bigDataUrl https://url/to/SRR11113_data.bb
  shortLabel SRR11113 peaks
  longLabel SRR11113 spleen control peaks

  track SRRComposite_SRR11113_signal
  parent SRRComposite
  type bigWig 0 100
  bigDataUrl https://url/to/SRR11113_data.bw
  shortLabel SRR11113 signal
  longLabel SRR11113 spleen control signal

  track SRRComposite_SRR11114_peaks
  parent SRRComposite
  type bigBed
  bigDataUrl https://url/to/SRR11114_data.bb
  shortLabel SRR11114 peaks
  longLabel SRR11114 spleen IFNg6h peaks

  track SRRComposite_SRR11114_signal
  parent SRRComposite
  type bigWig 0 100
  bigDataUrl https://url/to/SRR11114_data.bw
  shortLabel SRR11114 signal
  longLabel SRR11114 spleen IFNg6h signal

metadata.tsv

accession   tissue  protocol    treatment   _date   __count
SRR11111    blood   Omni-ATAC-seq   control 2026-01-01  12
SRR11112    blood   Omni-ATAC-seq   IFNg6h  2026-01-01  31
SRR11113    spleen  Omni-ATAC-seq   control 2026-08-21  8
SRR11114    spleen  Omni-ATAC-seq   IFNg6h  2026-08-22  17

One other note: sometimes you want more descriptive text than just "peaks" or "signal" in the selector, but the better label can't be used as part of a track name (maybe because it includes spaces). Specify the data type as <name>|"<label>" in that case. The "name" value generates the track names, while the label is what gets displayed. If the signal and peaks tracks represent methylated regions, then the following dataTypes setting might be appropriate:

  dataTypes signal|"Methylation signal (scaled)" peaks|"Highly methylated regions"

subtrackUrls

It can also be useful to have certain fields link out to external resources, particularly when accessions are in use. The subtrackUrls setting describes which fields become links and what the format of those URLs should be. Bringing back this example metadata file:

accession   tissue  protocol    treatment   _date   __count
SRR11111    blood   Omni-ATAC-seq   control 2026-01-01  12
SRR11112    blood   Omni-ATAC-seq   IFNg6h  2026-01-01  31
SRR11113    spleen  Omni-ATAC-seq   control 2026-08-21  8
SRR11114    spleen  Omni-ATAC-seq   IFNg6h  2026-08-22  17

Suppose you want the accession column to link to SRA and the protocol column to link to a page describing the protocol. Add the following subtrackUrls setting to the composite's trackDb stanza:

subtrackUrls accession=https://www.ncbi.nlm.nih.gov/sra/$$ protocol=https://www.protocols.io/view/$$

In each of these URLs, $$ is replaced with the relevant value from that field (one of the SRR strings for the accession field, or "Omni-ATAC-seq" for the protocol field).

The same <value>|"<label>" trick from the dataTypes section works here, for cases where the URL needs one value and the column should display another. The example above wouldn't quite work, because the actual URL for the protocol is "https://www.protocols.io/view/omni-atac-seq-improved-atac-seq-protocol-14egn94jyl5d", and nobody wants to read "omni-atac-seq-improved-atac-seq-protocol-14egn94jyl5d" in a table cell. Setting up the rows like this keeps the display readable and still links to the right protocol:

accession   tissue  protocol    treatment   _date   __count
SRR11111    blood   omni-atac-seq-improved-atac-seq-protocol-14egn94jyl5d|"Omni-ATAC-seq"   control 2026-01-01  12
SRR11112    blood   omni-atac-seq-improved-atac-seq-protocol-14egn94jyl5d|"Omni-ATAC-seq"   IFNg6h  2026-01-01  31
SRR11113    spleen  omni-atac-seq-improved-atac-seq-protocol-14egn94jyl5d|"Omni-ATAC-seq"   control 2026-08-21  8
SRR11114    spleen  omni-atac-seq-improved-atac-seq-protocol-14egn94jyl5d|"Omni-ATAC-seq"   IFNg6h  2026-08-22  17

Troubleshooting

Most problems when building a faceted composite trace back to a mismatch between the metadata TSV file and the subtrack names in the trackDb stanza. Check carefully that the values in the primaryKey column match the names of the subtracks, including capitalization. The hubCheck tool does not automate these checks yet, but that work is in progress.

Other important considerations:

Check the capitalization of the trackDb settings themselves (metaDataUrl, primaryKey, dataTypes, subtrackUrls, compositeTrack faceted).
The metadata file has to be tab-separated. Copy-pasting text often converts those tabs into spaces. Downloading metadata.simple.tsv keeps the tabs intact.
